Grace Design ALiX Acoustic Instrument Preamp / EQ / DI / Boost Pedal

Price$842.00

Acoustic and microphone preamp with a semi-parametric EQ, variable boost, tuner mute and a ground isolated DI output for the desk.

Colour: Black
Specifications
  • Input 1/4 inch instrument, 330k, 1M or 10M ohms, with 12 V mic power
  • Outputs Isolated XLR DI at line or mic level, 1/4 inch amp out, tuner out
  • Gain -2 to 36 dB to the DI
  • Boost 0 to 10 dB, on a footswitch
  • EQ Low shelf 125 or 250 Hz, parametric mid 70 Hz to 8 kHz in two ranges, high shelf 2 kHz, 12 dB cut or boost
  • Filter High-pass or notch, 20 Hz to 1 kHz
  • FX loop TRS insert
  • Power Internal supply, 100 to 240 V AC, 10 W
  • Power out 9 V DC at 500 mA for other pedals
  • Size 7.6 x 15.7 x 14.0 cm (H x W x D)
  • Weight 1 kg (2.2 lb)
  • Finish Black or silver

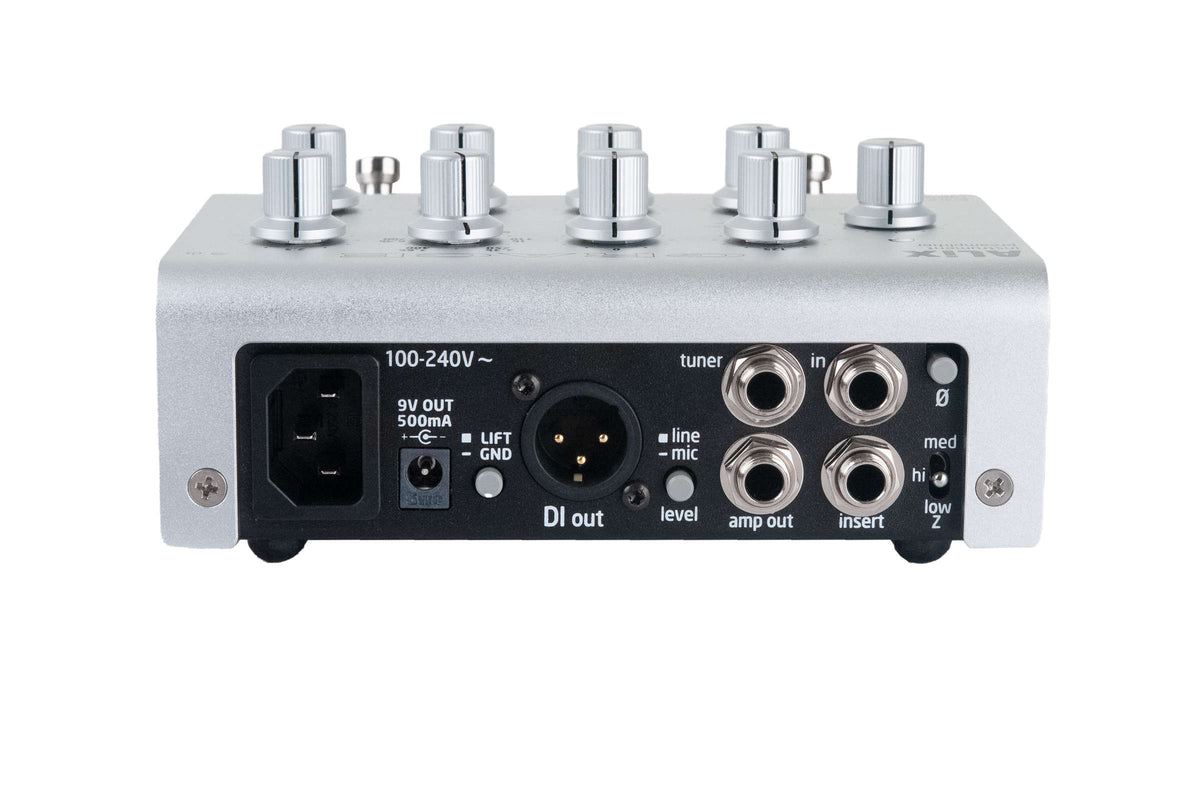

Grace Design ALiX instrument preamp, silver
